SWPF - Perforated Face Swirl Diffusers

Product Code: SWPF

Removable for easy maintenance, the perforated face swirl diffuser's cover conceals a high-quality swirl diffuser.

Request a Quotation

SWPF size

Finish (standard unless stated)

Qty:

Description

About SWPF - Perforated Face Swirl Diffusers

A high-performance swirl diffuser, concealed behind a removable perforated face.

Offering the high-performance diffusion properties of a fixed blade swirl diffuser, with the understated appearance of a perforated plate grille.

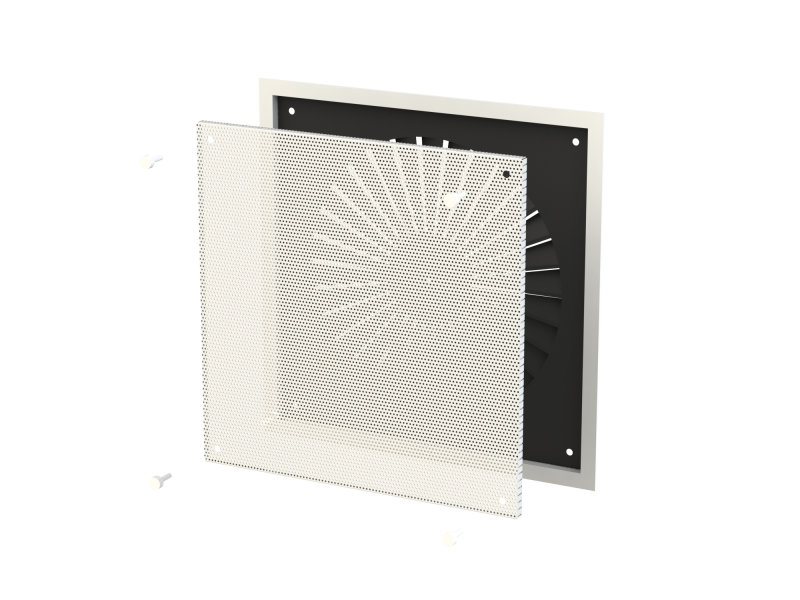

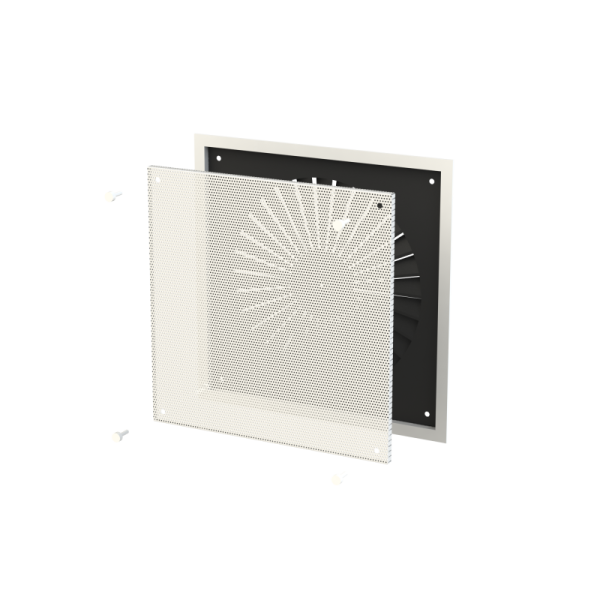

The perforated face is held in place using an ergonomic plastic screw in each corner, enabling the fascia to be quickly and easily removed for cleaning and maintenance.

Two swirl diffuser sizes are available, 356mm and 457mm diameter, which are both built into a 595mm x 595mm overall tile replacer size frame, compatible with lay-in type ceiling grid systems.

HVC hold large quantities of perforated face swirl diffuser in stock, enabling us to supply even the largest jobs on a next day basis.

Please download the product PDF for detailed information and ordering codes.

Get in touch with HVC Supplies with any questions.
Specification
SWPF - Perforated Face Swirl Diffusers Specifications
Design, construction and finish:

Material: Perforated steel fascia plate, pressed steel swirl diffuser, extruded aluminium frame, moulded plastic screws
Standard frame: 25mm flat
Standard finish: RAL9010 matte white held in stock
Optional finishes: Polyester powder coated to any RAL or BS colour
Properties:

Mass/unit: 5.5 kg
Recommended use:

Internal/External use: Internal
Recommended use: Supply
Information above is for quick reference purposes only, please see the full product datasheet for detailed information
Downloads
Downloads for SWPF - Perforated Face Swirl Diffusers
- Series SWPF - Product datasheet
- O&M manual - Grilles, diffusers, louvres
Archived Downloads
Archived Downloads for SWPF - Perforated Face Swirl Diffusers
