LG - Linear Bar Grilles

Product Code: LG

An extremely versatile grille series, available in a wide range of specifications to suit any application.

Request a Quotation

LG model

Opposed blade damper (factory fitted)

Width (mm)

Height (mm)

Frame type

Fixing holes

Finish (standard unless stated)

Qty:

Description

About LG - Linear Bar Grilles

Linear bar grilles are internally used and designed for air ventilation to evenly distribute the airflow into a space. The aluminium blades allow air to pass through and you can equip a filter to prevent foreign objects such as dirt and debris from entering and harming the application. Ideal for applications in homes, offices and industrial buildings, linear bar grilles are suitable for almost any application.

A Wide Range of Models & Specifications

We understand one linear bar grille doesn't fit all. That is why our range of linear bar grilles are available in different models as well as different specifications such as spacings, dimensions, frames and finishes - making them highly customisable to fit to your exact requirements and suit your application perfectly.

Blade profiles include 0°, 15° and 45° - all of which can be set on either 12.5mm or 20mm spacings. Each of these options can be set up to have different properties in terms of blow direction, free area and robustness.

Other specifications include hinged and removable cores, rear-mounted opposed blade dampers for airflow balancing and polyester powder coating to any RAL/BS colour such as black, white, silver, grey and so on. Frames vary in many styles from flat and bevelled to tray frame and surface mounted. Also available in a plaster-in frame design for seamless appearance once installed.

Linear Bar Grills From HVC Supplies

Our series of linear bar grilles are manufactured in-house to suit your precise requirements with HVC's industry-leading lead times.

HVC Supplies is an ISO 9001 certified company. We also offer other similar ranges including other grilles, diffusers, dampers, louvre systems and ductwork ancillaries. For more information about our linear bar grilles, please download the product brochure under the downloads section, here you can find further details such as technical specifications and drawings as well as ordering codes.

If you’re interested in ordering linear bar grilles from HVC Supplies, please fill out the form and request a quotation above. Otherwise, if you can’t find what you’re looking for, or if you have any enquiries about linear bar grilles, please contact us today.
Specification
LG - Linear Bar Grilles Specifications
Design, construction and finish:

Material: Extruded aluminium frame and blades
Standard frame: 36B (36mm bevelled)

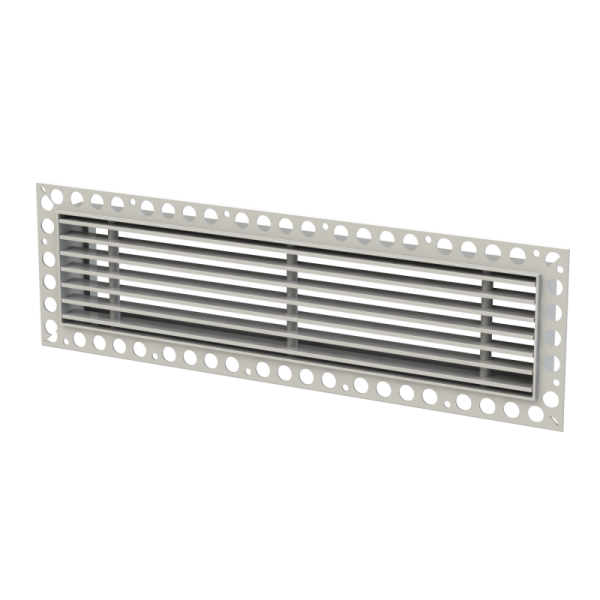

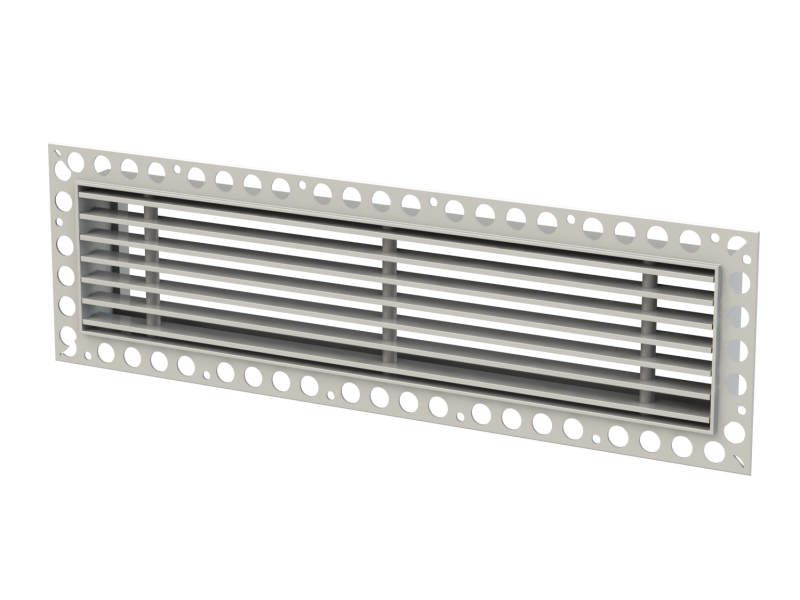

Optional frame(s): 31F (31mm flat), TF (tray frame), SML (surface mounted large), PLG (plaster-in)
Standard finish: Satin anodised (AA5)
Optional finishes: Polyester powder coated to any RAL or BS colour
Properties:

Free area: Varies - See PDF
Mass/m2: Varies - See PDF
Mass/m2 c/w opposed blade damper: Varies - See PDF
Recommended use:

Internal/External use: Internal
Recommended use: Intake and supply
Information above is for quick reference purposes only, please see the full product datasheet for detailed information
Downloads
Downloads for LG - Linear Bar Grilles
- Series LG - Product brochure
- O&M manual - Grilles, diffusers, louvres
Archived Downloads
Archived Downloads for LG - Linear Bar Grilles
